溫度單位:℃ 電壓單位:mV
參考溫度點:0℃(冰點)
温度 |
0 |
-10 |
-20 |
-30 |
-40 |
-50 |
-60 |
-70 |
-80 |
-90 |
-100 |
0 |
0 |
-0.0527 |
-0.1028 |
-0.1501 |
-0.1944 |
-0.2356 |
|
|
|
|
|
温度 |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
0 |
0 |
0.0553 |
0.1129 |
0.1728 |
0.2349 |
0.2989 |
0.3649 |
0.4327 |
0.5022 |
0.5733 |
0.6459 |
100 |
0.6459 |
0.72 |
0.7955 |
0.8722 |
0.9502 |
1.0294 |
1.1097 |
1.191 |
1.2733 |
1.3566 |
1.4408 |
200 |
1.4408 |
1.5258 |
1.6116 |
1.6982 |
1.7855 |
1.8736 |
1.9623 |
2.0516 |
2.1415 |
2.232 |
2.323 |
300 |
2.323 |
2.4146 |
2.5067 |
2.5993 |
2.6923 |
2.7858 |
2.8797 |
2.974 |
3.0687 |
3.1639 |
3.2594 |
400 |
3.2594 |
3.3552 |
3.4514 |
3.548 |
3.6449 |
3.7422 |
3.8398 |
3.9377 |
4.0359 |
4.1344 |
4.2333 |
500 |
4.2333 |
4.3325 |
4.4319 |
4.5317 |
4.6318 |
4.7322 |
4.8329 |
4.9339 |
5.0352 |
5.1368 |
5.2387 |
600 |
5.2387 |
5.3409 |
5.4435 |
5.5463 |
5.6495 |
5.753 |
5.8568 |
5.9609 |
6.0654 |
6.1701 |
6.2752 |
700 |
6.2752 |
6.3807 |
6.4865 |
6.5926 |
6.699 |
6.8058 |
6.913 |
7.0205 |
7.1283 |
7.2365 |
7.345 |
800 |
7.345 |
7.4539 |
7.5631 |
7.6726 |
7.7825 |
7.8928 |
8.0034 |
8.1143 |
8.2256 |
8.3373 |
8.4492 |
900 |
8.4492 |
8.5616 |
8.6742 |
8.7872 |
8.9005 |
9.0141 |
9.1281 |
9.2423 |
9.3569 |
9.4719 |
9.5871 |
1000 |
9.5871 |
9.7026 |
9.8185 |
9.9347 |
10.0512 |
10.168 |
10.2851 |
10.4026 |
10.5203 |
10.6383 |
10.7565 |
1100 |
10.7565 |
10.875 |
10.9937 |
11.1127 |
11.2318 |
11.3511 |
11.4707 |
11.5904 |
11.7103 |
11.8303 |
11.9505 |
1200 |
11.9505 |
12.0709 |
12.1914 |
12.312 |
12.4327 |
12.5536 |
12.6745 |
12.7956 |
12.9167 |
13.0378 |
13.1591 |
1300 |
13.1591 |
13.2804 |
13.4017 |
13.523 |
13.6444 |
13.7658 |
13.8872 |
14.0086 |
14.1299 |
14.2513 |
14.3726 |
1400 |
14.3726 |
14.4939 |
14.6151 |
14.7362 |
14.8573 |
14.9783 |
15.0992 |
15.22 |
15.3407 |
15.4612 |
15.5817 |
1500 |
15.5817 |
15.702 |
15.8221 |
15.9421 |
16.0619 |
16.1816 |
16.301 |
16.4203 |
16.5394 |
16.6582 |
16.7768 |
1600 |
16.7768 |
16.8952 |
17.0134 |
17.1313 |
17.2489 |
17.3663 |
17.4834 |
17.6002 |
17.7165 |
17.8323 |
17.9473 |
1700 |
17.9473 |
18.0613 |
18.1741 |
18.2855 |
18.3953 |
18.5033 |
18.6093 |
|
|
|
|
以上是昌晖仪表提供的“S型热电偶分度表”,本站也可查阅K型热电偶分度表和Pt100铂电阻分度表。另外,本站提供了仅73k的“热电偶-热电阻分度软件”供大家免费使用。该软件不用安装,简洁实用,是仪表技术人员必备工具软件。
热电偶-热电阻分度软件特点

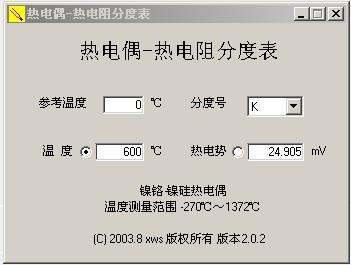

1、热电偶分度软件可简单实现热电偶温度值-热电势值互换查询,包含K、R、B、N、E、J、T和S型热电偶分度表。软件单纯用于热电偶分度表查询时注意将“参考温度”对话框内的值设定为“0”。在“温度”对话框输入任一温度值后在“热电势”对话框自动显示对应mV值;在“热电势”对话框输入任一mV值后在“温度”对话框自动显示对应温度值。

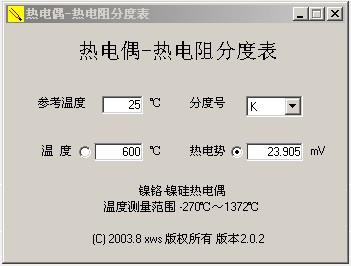

2、在校验热电偶输入的显示控制仪、温度变送器或DCS系统时会涉及温度补偿,使用该软件时在“参考温度”对话框内输入环境补偿温度值,就能轻松实现扣除温度补偿后热电偶值-热电势之间的互换查询。假定校验二次仪表时环境温度为25℃,如需要校对K分度号输入仪表600℃点的显示值:首先查表得到25℃对应的热电势值为1mV,600℃对应的热电势值为24.905mV。校验二次仪表600℃点的显示值应该输入热电势值为23.905(仪表输入值=校验点对应的热电势值—温度补偿对应的热电势值=24.905mV-1.000mV)

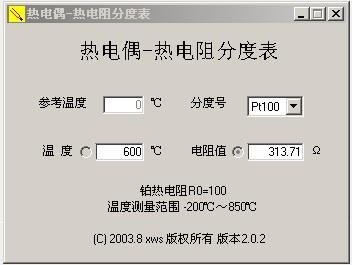

3、软件可简单实现热电阻温度值-电阻值之间互换查询,热电阻分度表包含Pt10、Cu50、Cu100和Pt100分度号热电阻。
