溫度單位：℃
電壓單位：mV
參考溫度點：0℃(冰點)
温度 |
0 |
-10 |
-20 |
-30 |
-40 |
-50 |
-60 |
-70 |
-80 |
-90 |
-95 |
-100 |
-200 |
-5.8914 |
-6.0346 |
-6.1584 |
-6.2618 |
-6.3438 |
-6.4036 |
-6.4411 |
-6.4577 |
||||
-100 |
-3.5536 |
-3.8523 |
-4.1382 |
-4.4106 |
-4.669 |
-4.9127 |
-5.1412 |
-5.354 |
-5.5503 |
-5.7297 |
-5.8128 |
-5.8914 |
0 |
0 |
-0.3919 |
-0.7775 |
-1.1561 |
-1.5269 |
-1.8894 |
-2.2428 |
-2.5866 |
-2.9201 |
-3.2427 |
-3.3996 |
-3.5536 |
温度 |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
95 |
100 |
0 |
0 |
0.3969 |
0.7981 |
1.2033 |
1.6118 |
2.0231 |
2.4365 |
2.8512 |
3.2666 |
3.6819 |
3.8892 |
4.0962 |
100 |
4.0962 |
4.5091 |
4.9199 |
5.3284 |
5.7345 |
6.1383 |
6.5402 |
6.9406 |
7.34 |
7.7391 |
7.9387 |
8.1385 |
200 |
8.1385 |
8.5386 |
8.9399 |
9.3427 |
9.7472 |
10.1534 |
10.5613 |
10.9709 |
11.3821 |
11.7947 |
12.0015 |
12.2086 |
300 |
12.2086 |
12.6236 |
13.0396 |
13.4566 |
13.8745 |
14.2931 |
14.7126 |
15.1327 |
15.5536 |
15.975 |
16.186 |
16.3971 |
400 |
16.3971 |
16.8198 |
17.2431 |
17.6669 |
18.0911 |
18.5158 |
18.9409 |
19.3663 |
19.7921 |
20.2181 |
20.4312 |
20.6443 |
500 |
20.6443 |
21.0706 |
21.4971 |
21.9236 |
22.35 |
22.7764 |
23.2027 |
23.6288 |
24.0547 |
24.4802 |
24.6929 |
24.9055 |
600 |
24.9055 |
25.3303 |
25.7547 |
26.1786 |
26.602 |
27.0249 |
27.4471 |
27.8686 |
28.2895 |
28.7096 |
28.9194 |
29.129 |
700 |
29.129 |
29.5476 |
29.9653 |
30.3822 |
30.7983 |
31.2135 |
31.6277 |
32.041 |
32.4534 |
32.8649 |
33.0703 |
33.2754 |
800 |
33.2754 |
33.6849 |
34.0934 |
34.501 |
34.9075 |
35.3131 |
35.7177 |
36.1212 |
36.5238 |
36.9254 |
37.1258 |
37.3259 |
900 |
37.3259 |
37.7255 |
38.124 |
38.5215 |
38.918 |
39.3135 |
39.708 |
40.1015 |
40.4939 |
40.8853 |
41.0806 |
41.2756 |
1000 |
41.2756 |
41.6649 |
42.0531 |
42.4403 |
42.8263 |
43.2112 |
43.5951 |
43.9777 |
44.3593 |
44.7396 |
44.9293 |
45.1187 |
1100 |
45.1187 |
45.4966 |
45.8733 |
46.2487 |
46.6227 |
46.9955 |
47.3668 |
47.7368 |
48.1054 |
48.4726 |
48.6556 |
48.8382 |
1200 |
48.8382 |
49.2024 |
49.5651 |
49.9263 |
50.2858 |
50.6439 |
51.0003 |
51.3552 |
51.7085 |
52.0602 |
52.2354 |
52.4103 |
1300 |
52.4103 |
52.7588 |
53.1058 |
53.4512 |
53.7952 |
54.1377 |
54.4788 |
54.8186 |
ITS-90國際溫度標準(JIS C 1602-1995，ASTM E230-1996，IEC 584-1-1995)
以上是昌晖仪表提供的“K型热电偶分度表”，本站也可查阅S型热电偶分度表和Pt100分度表。另外，本站提供了仅73k的“热电偶-热电阻分度软件”供大家免费使用。该软件不用安装，简洁实用，是仪表技术人员必备工具软件。

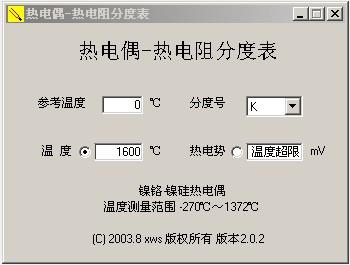

热电偶-热电阻分度软件特点

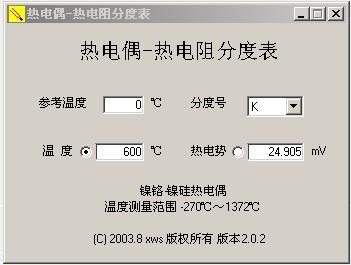

1、可简单实现热电偶温度值-热电势值互换查询，热电偶分度表包含S、R、B、N、E、J、T和K型热电偶分度表。软件单纯用于热电偶分度表查询时注意将“参考温度”对话框内的值设定为“0”。

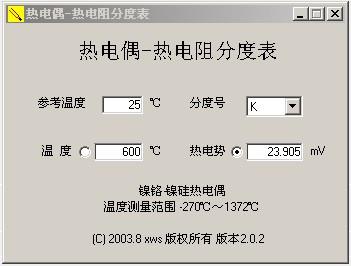

2、在校验热电偶输入的显示控制仪、温度变送器或DCS系统时会涉及温度补偿，使用该软件时在“参考温度”对话框内输入环境补偿温度值，就能轻松实现扣除温度补偿后热电偶值-热电势之间的互换查询。

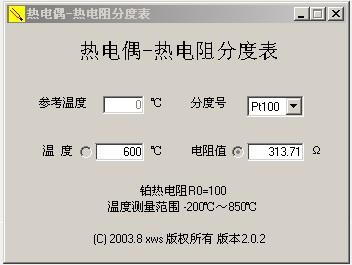

3、软件可简单实现热电阻温度值-电阻值之间互换查询，热电阻分度表包含Pt10、Cu50、Cu100和Pt100分度号热电阻。
